Raytools BW06K 6kW Laser Welding Head

The BW06K is a transmissive laser welding head designed for fiber laser welding applications below 6000W. It features a high depth-to-width ratio of weld seams, making it well-suited for deep penetration welding. It delivers excellent welding results on medium to thick materials and offers a high cost-performance ratio. It can be equipped with a high-definition CCD camera for real-time monitoring of the weld seam.

Product Features

High Cost Performance: Compatible with the wavelength range of mainstream fiber lasers on the market, offering excellent value within the 6kW power range.
Efficient Cooling: Both collimation and focusing lens mounts are water-cooled, ensuring long-term stable operation and extended service life.
Excellent Welding Performance: Optimized optical design enables deep penetration welding with a high depth-to-width ratio, making it especially suitable for welding medium and thick plates.

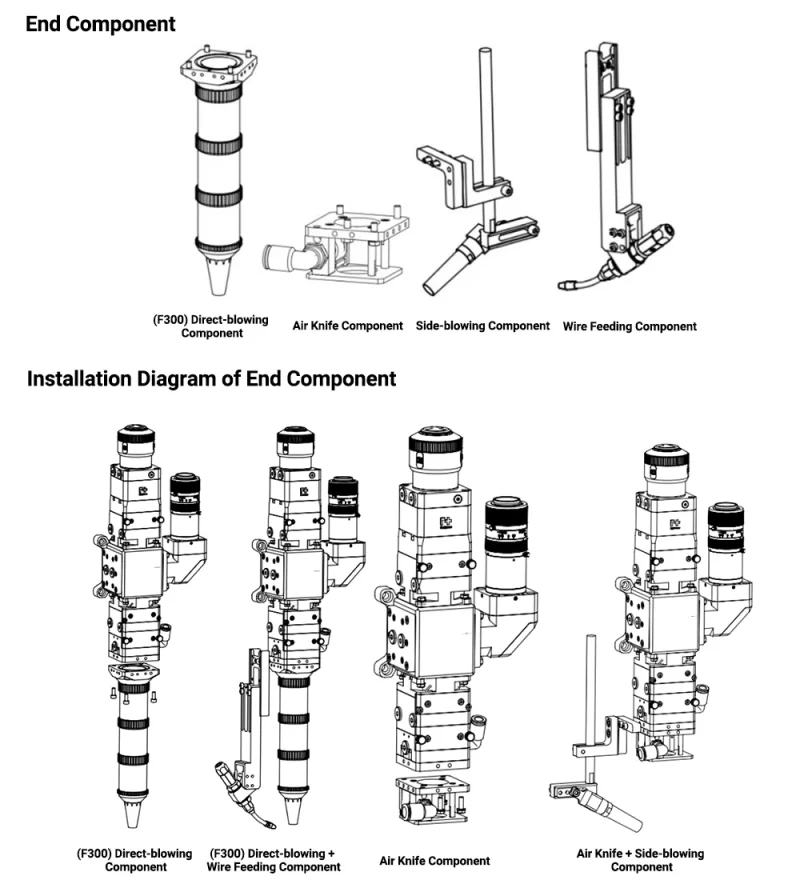

Modular Expansion: Supports optional modules such as seam tracking and positioning, facilitating automated welding integration.
Optimized Airflow Design: Features a smooth, high-efficiency fluid structure to ensure excellent molten pool protection.
High Dust Resistance: Dual protective lens design effectively prevents lens damage caused by dust accumulation, extending the service life of the welding head.

Technical Parameters

Raytools BW06K Laser Welding Head Configuration
Model	BW06K
Laser Wavelength	1064 nm
Laser Power	≤6 kW
Fiber Interface	QBH (standard), QD (optional)
Clear Aperture	34 mm
Collimation Focal Length	100 mm / 125 mm / 150 mm
Focusing Focal Length	150 mm / 200 mm / 250 mm / 300 mm
Protective Lens Specification	Ø37 mm × 5 mm
Vision Lens	Standard C/CS mount
Water Cooling Interface	None
Gas Interface	Ø8 mm
Dimensions	323.3 × 160 mm
Weight	~3 kg
Expandable Features	Lens temperature monitoring module
