4000W Single Module CW Fiber Laser Source RFL-C4000S-CE
Raycus 4000W single module CW fiber laser has high electro-optical conversion efficiency, good beam quality, high energy density, wide modulation frequency, strong reliability, long life, and maintenance-free operation. It can be widely used in welding, precision cutting, cladding, surface treatment, 3D printing and other fields. Its optical fiber output characteristics make it easier to integrate with robots into flexible manufacturing equipment to meet the needs of three-dimensional processing.
Application
- Precision Cutting
- Sheet Metal Piercing
- Surface Treatment
- Metal Welding
- Metal Carving
- 3D Printing/Rapid Prototyping
Product Features
- High electro-optical conversion efficiency
- Output fiber length can be customized
- QBH connector
- Maintenance-free operation
- Wide modulation frequency range
- Small size, easy to install
Technical Parameters
Optical Properties
- Average Output Power (W) : 4000
- Central wavelength (nm) : 1080±5
- Maximum Modulation Frequency (kHz) : 20
- Output Power Instability : ±1.5%
- Red Laser : Yes
Output Characteristics
- Output Connector : QBH (customizable)
- Output Fiber Core Diameter (μm): 50 (customizable)
- Beam Quality : 1.7-2.5
- Polarization State : random
- Output Fiber Length (m) : 20 (customizable)
Electronic Control Characteristics
- Input Power (V AC ) : 380±10%, Three Phase-four Wire Connect
- Control Mode : RS232, AD
- Power Adjustment Range (%) : 10-100
Other Characteristics
- Dimensions (mm ) : 485*172*802 (handle included)
- Weight (kg) : <80
- Cooling Method : water cooling
- Working Temperature (℃ ) : 10-40

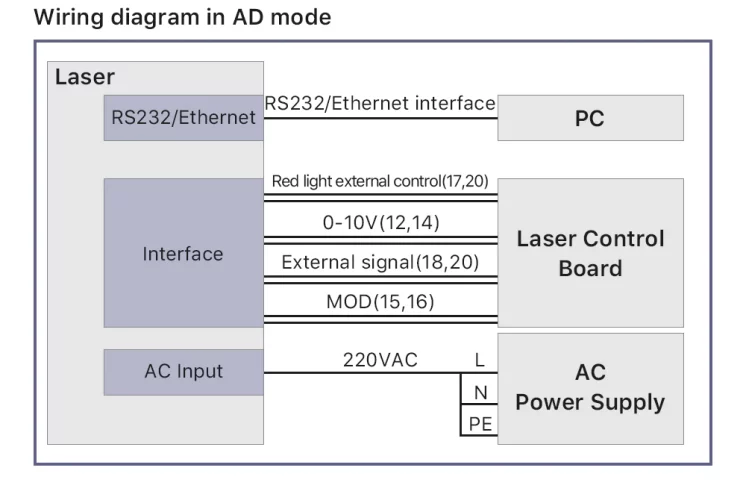

Wiring Diagram
Sample Display
