Raytools 0-1.5kW Fiber Laser Cutting Head BT210S
Equipped with various optical fiber interfaces such as QBH and QCS, which can be adapted to various mainstream lasers. Optimized optical configuration and smooth and efficient airflow design significantly improve cutting quality and efficiency. The modular, slender nozzle design reduces workpiece interference. The light weight and small volume reduce the robot load and improve the cutting speed and quality.
Application
- CL100 FL150
Product Features
- The wholly optimized optical focusquality, the design of the gas channel inner chamber, breathing gas flow, and cooling nozzle.
- The delicate focus sets for different steel-cutting applications and other industrial laser processing environments.
- A variety of flexible optical fiber connectors and optical collimating and re-focusing equipment.
Technical Parameters
|
BT210S Cutting Head Configuration
|
|
|---|---|
|
Fiber Interface
|
QBH/QCS
|
|
Clear Aperture
|
25mm
|
|
Collimating Length
|
100mm
|
|
Focusing Length
|
150mm
|
|
Protective Windows
|
D24.9*1.5mm (Top)
|
|
D27.9*4.1mm (Bottom)
|
|
|
Nozzles Styles
|
Single / Double
|
|
Diameter of Nozzle Tip
|
0.8mm, 1.0mm, 1.2mm, 1.5mm
|
|
2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.0mm
|
|
|
Assist Gas Pressure
|
≤20bar
|
|
Laser Cutting Head Weight
|
1.8kg
|

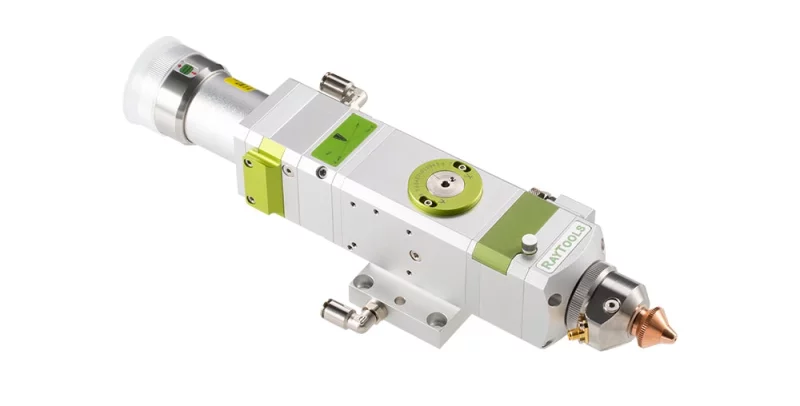

Product Details
*Notice: The direction of cooling water inlet and outlet can be arranged at will.
Product Dimension
Sample Display
